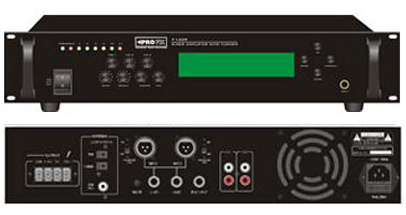

| Profx-T-120 R (120 Watt Mixer Amplifier with Tuner) |
 |
|
The Mixer Amplifier with Tuner series provide an integrated sound system for background music, paging and fire emergency alarm applications, the multi choices of power wattages from 120W can provide and ideal public address solution from small to big places such as schools, hotels, and factories to train and air stations. |
| Features : |
 Rated outputs from 120W. |
| 100V / 70V line transformer-isolated speaker outputs, low impedance 4-16 Ωhms speaker outputs. |
| LCD English display. |
| AM / FM each 100 channels memory storage. |
| Tuner manual or automatic search. |
| Two balanced line input and three balanced microphone inputs. |
| One stereo aux input and one amp input. |
| One EMC input with priority over all other inputs except MIC 1. |
| AUX, MIC, Tuner, Bass, Treble and master volume control.. |
| MIC 1 mute level control. |
| Power and protection indicators and 6 output level meters. |
| Technical Specifications: |
| Technical Specifications |
Profx-T-120 R |
| Rated Power Output |
120W |
| Speaker Outputs |
4~16 Ωhms, 70V / 100V |
| Inputs |
MIC 1, 2, 3: 5mV / 600W, Balanced / Unbalanced
AUX 1: 250mV / 15KW Unbalanced
EMC: 250mV / 15KW Unbalanced |
| TONE |
Bass: +10dB at 100Hz
Treble: +10dB at 10KHz |
| Frequency response |
50 Hz ~ 15KHz |
| S/N Ratio |
MIC 1,2, 3: 66dB; AUX1: 80dB |
| T.H.D |
Less than 1% at 1KHz, 1/3 rated power |
| Cross Talk |
MIC: 80dB, AUX: 85dB |
| Muting Function |
MIC1 over other input signals with 0-30dB Attenuation EMC1 over all inputs except MIC1. |
| Controls |
Individual gain controls, power switch |
| Indicators |
Power LED, LED level meter, protect |
| Protection |
AC fuse, short-circuit and high temperature |
| TUNER |
| Frequency Response |
FM |
87-108MHz |
AM |
522-1611kHz |
| Sensitivity |
FM |
20uV |
AM |
6.0mV / m |
| Signal / Noise Ratio |
FM |
40dB |
AM |
36dB |
| Power requirements |
~220V + 10% 50Hz |
| Power Consumption |
200W |
| Dimensions (mm) |
484 x 425 x 88 |
| Net Weight |
11.36 Kg. |
| Gross Weight |
12.56 Kg. |
|
| |
